Scheduled 3CX Group report – Total to PDF and e-mail

JEDWare´s 3CX Group report – total
delivered by PDF

For those who thrive on data-driven insights, the JEDWare Group Report – Total provides a detailed statistical breakdown of your team’s call activity, helping you optimize efficiency and performance.

This is the report to see how your group or department handles both customer calls and internal communication, all in one place!

The report contains:
Agent ext, Name, inbound, Queue or direct answered/lost, Outbound to customer, internal calls, total in/out – all with time answered/lost %

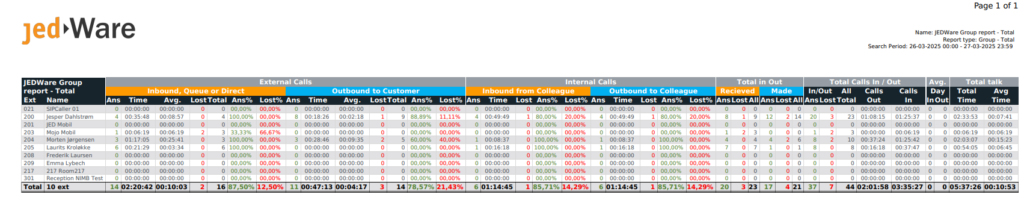

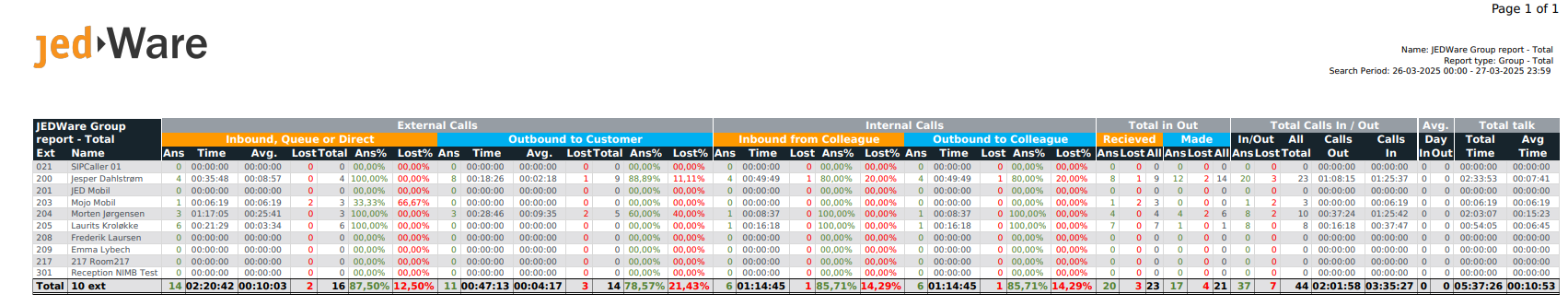

The report looks like the one shown under here:

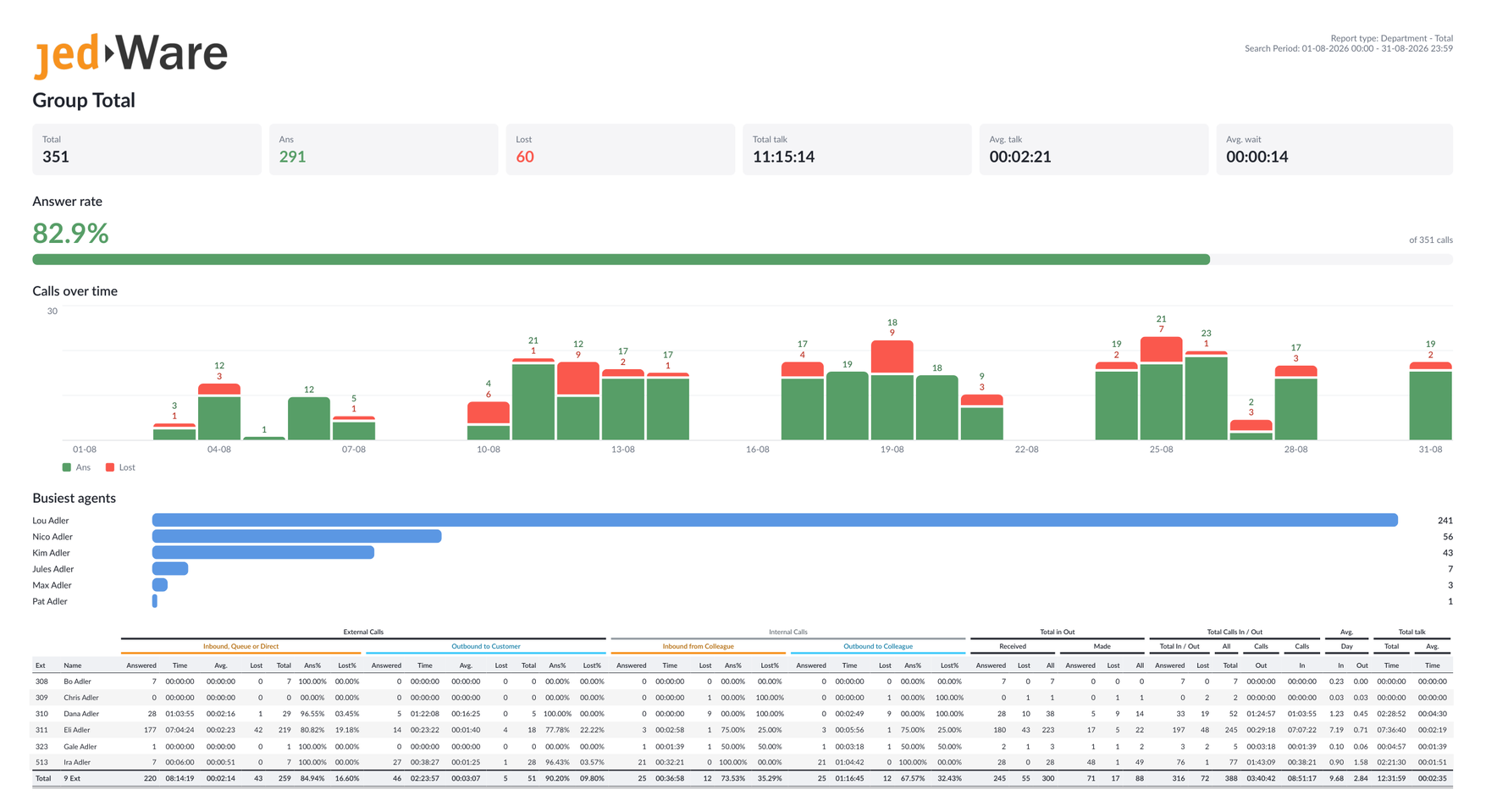

What you get: an example of the finished PDF report.

Set up the report

  1. In the left menu, open Report and click Scheduled tasks.
  2. Choose the PDF Generation tab and click Create PDF in the top right.
  3. Pick Department report – Total from the template list.
JEDWare scheduled tasks jedware scheduled task picker pdf 2026

The report settings open. Everything for this report is on one page:

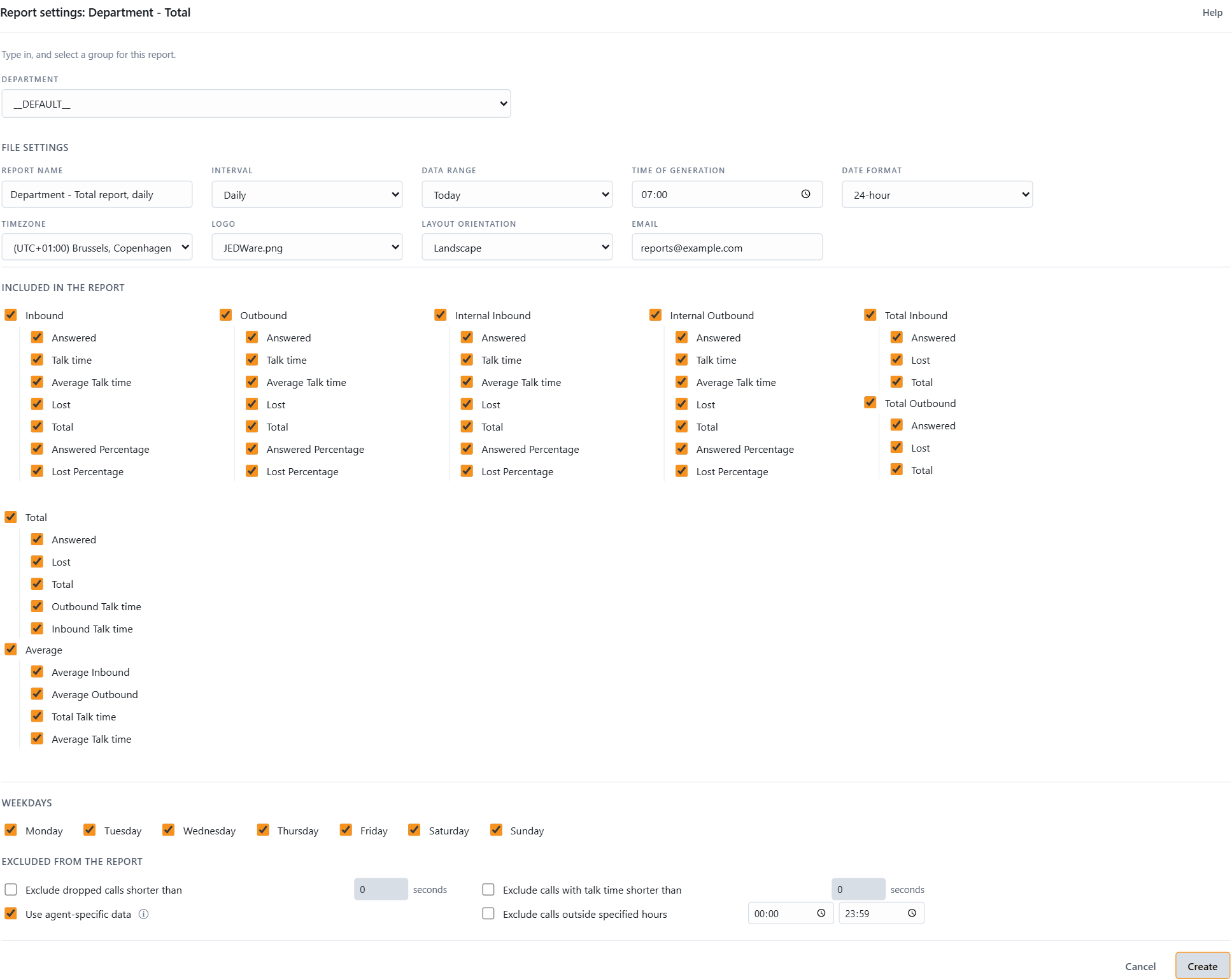

JEDWare scheduled PDF report settings sched pdf GroupTotal

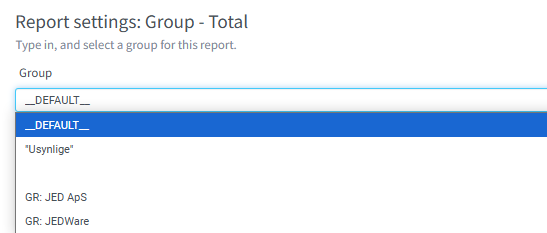

1. Who or what the report covers

Pick the departments the report should cover. Departments come from your 3CX; JEDWare synchronizes them automatically. (This template was called “Group report” in older versions.)

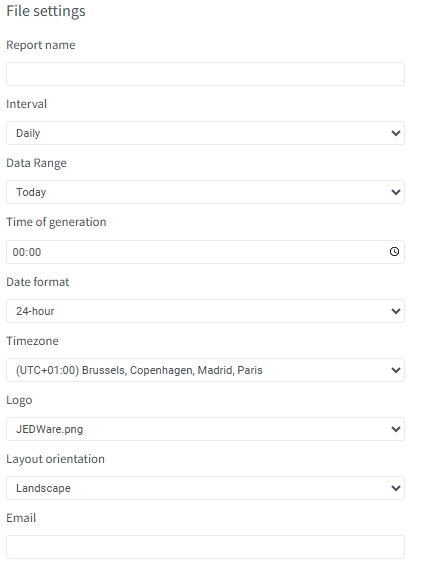

2. File settings

  • Report name: your own name for the task. It is shown in the task list and used as the file name.
  • Interval: how often the report runs. Hourly, Daily, Weekly or Monthly. Weekly and Monthly ask for the day of generation.
  • Data range: which period the report covers, for example Yesterday for a daily report, or a custom range of days.
  • Time of generation: the time of day the report is created. Pick a quiet time for the heavy ones; the report asks your 3CX for fresh data when it runs.
  • Date format and Timezone: 24-hour or AM/PM, and the timezone the times in the report should be shown in. Useful when the 3CX server and the reader sit in different countries.
  • Email: the PDF is sent to one or more addresses (separate several with a comma). A green check mark confirms a valid address.

3. Included in the report

Tick the call types and columns you want. Everything is included by default; untick what you do not need.

4. Weekdays

Only calls on the ticked weekdays count. Untick Saturday and Sunday for a working-week report.

5. Excluded from the report

Leave out calls that were dropped within a few seconds, calls with a very short talk time, calls outside the hours you specify, or the text header of the file. Use agent-specific data makes the numbers reflect the agent who actually handled the call; see JEDWare philosophy for 3CX reporting.

6. Create

Click Create. The task appears in the list and runs at the next time of generation.

After you click Create

The task list shows every scheduled PDF report. From here you can:

  • Enable or disable a task with the checkbox, without deleting it.
  • Edit a task by clicking its row.
  • Delete a task.
  • Run now: creates the report immediately, so you can check the settings before you trust them with a schedule.

The PDF arrives by email as soon as it has been created.

JEDWare scheduled tasks jedware scheduled task list pdf 2026

Related: all CSV report templates, all PDF report templates, troubleshooting scheduled reports.
